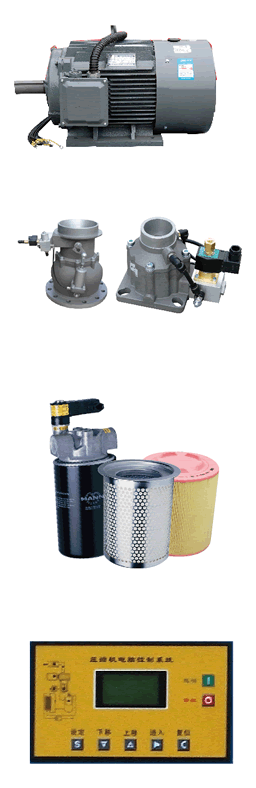

Special new generation of low efficiency motor
ShangHai Cleeson Compressor product line to meet the needs of supporting the production of three-phase asynchronous motors, technical standards covered GB,
IEC, NEMA, DIN, JS KS, AS, SAS and other multi-national standards, the products cover low-voltage motors (aluminum, cast iron),
High-voltage motors (steel castings), special purpose motor, explosion-proof motor, frequency conversion motor, high efficiency motor with
To provide users with the ability to motor overall solution. |
A full set of imported gas regulation system
Positive and negative pressure signal proportional valve 100% feedback to the servo cylinder and intake control valve.
Intake control valve displacement implementation of 0-100% stepless adjust the amount of gas and gas consumption, Optimal energy savings.
Temperature control valve set card, close temperature and automatically adjust the temperature of the lubricating oil, lubricating oil viscosity to maintain the best condition
To make sure that the exhaust gas temperature in the pressure above the dew point temperature, to extend oil change intervals.
The minimum pressure valve injection pressure required for lubrication to ensure the maintenance of the body, reduce the air flow rate of the oil separator, the oil and gas sub-
From the best, and have the function of the check valve. |
Import filter system
Efficient oil separator, the the exhaust oil content below 3PPM.
Efficient oil filter, filter out impurities in the lubricant, clean the handpiece rotor bearing lubricants.
High efficiency air filters, filter out impurities inhalation of dust in the air, head rotor, bearings and other exempt harm.
Equipped with a pressure sensor, when the filter is blocked, the differential pressure exceeds the set value, automatic alarm to remind you to maintain or
Replacement. |
Imports of high-tech micro-controller with a powerful fault diagnosis
and protection functions
The 1.LCD in English
2 next to the remote machine control
Linkage choose to run independently
4 with start and stop the motor control
The air compressor protection against reversal
The temperature detection and control protection
Voltage detection and protection
8.RS-485 communication, support MODBUS RTU protocol
(9) the motor phase failure, overload, unbalanced, high voltage, low voltage protection function
10. Highly integrated, high reliability, cost-effective |
|
|
|
